Transducers and Measurement System

Force/Load Measuring System

Type

  • Universal
  • Compression
  • Tension

Range

  • 1 kg to 100 Tonne
  • 1 kg to 500 Tonne
  • 1 kg to 50 Tonne

Application

Hopper and Silo Weighing, Platform scale, weigh bridges, batching & counting by weight, weight feeder & packing by weight, Pressing / Interference & general force measurement etc.

Torque Measuring System

Type

  • Reaction
  • Inline

Range

  • 0.5 kg-m to 5000 kg-m
  • 0.5 kg-m to 2000 kg-m

Application

Torsion Testing, Wrench Calibration, Power Measurement of Motors & etc.

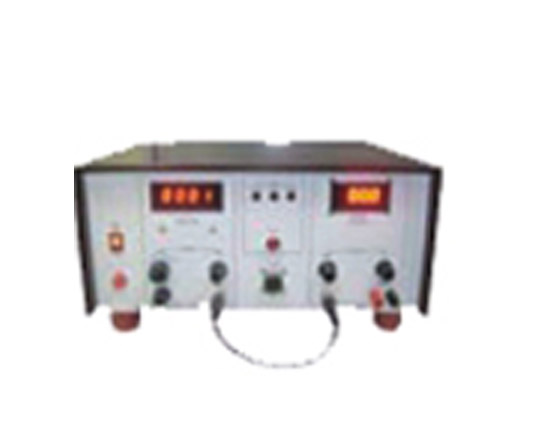

Vibration

Type

  • Measuring & Generating

Range

  • 10 N to 200N

Application

Dynamic Balancing rotor, Turbines, vibration in Machines, natural frequency measurements, Damping characteristics, Predictive maintenance of machines.

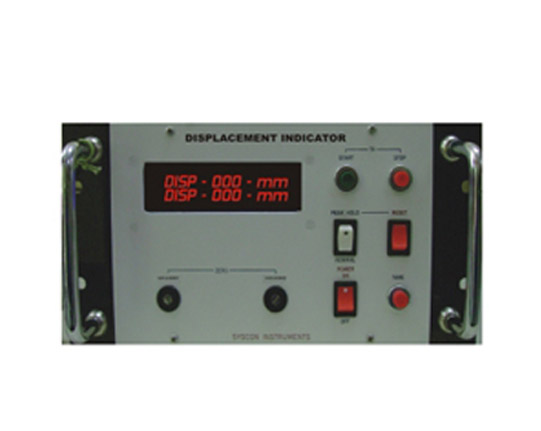

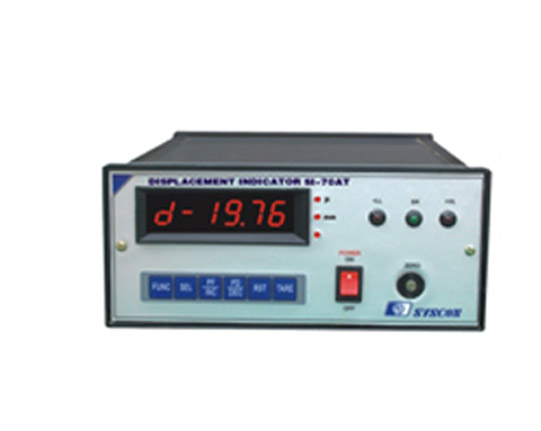

Displacement

Type

  • Spring Loaded & Free Core

Range

  • 0-2mm to 0-100mm

Application

Dimensional Inspection, Comparator's, Linear Travel Motion Measurement Structural Engineering Applications. Fatigue strength & natural frequency measurements.

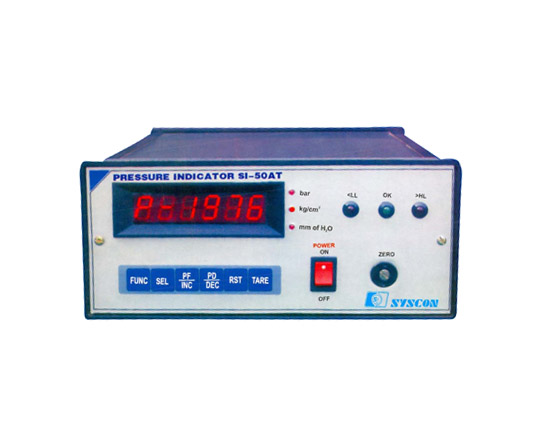

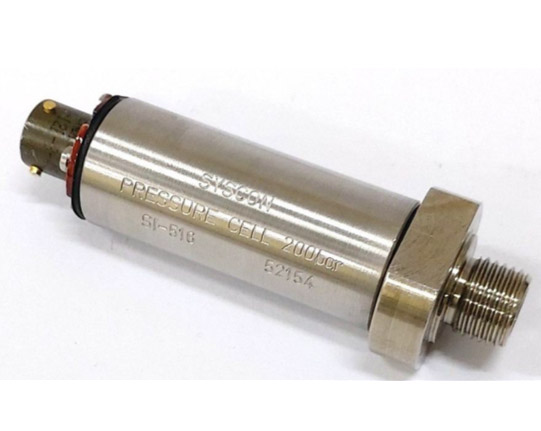

Pressure

Type

  • Pressure
  • Vacuum

Range

  • 1bar to 2000bar
  • 760mm of Hg

Application

Leak measurements pressure measurements in pipes, exhausts, pumps, internal combustion engine, wind tunnel, fluidic studies, soil, pore pressure.

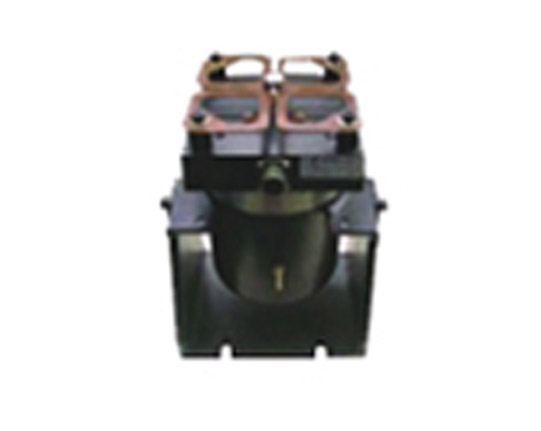

Dynamometers

Type

  • Lathe
  • Milling
  • Drilling

Range

  • 500 kgf
  • 500 kgf
  • 10 kg-m & 500 kgf

Application

Turning, Milling, Drilling process of Machining.

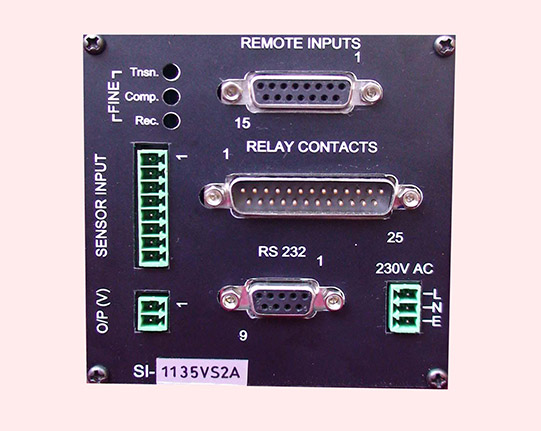

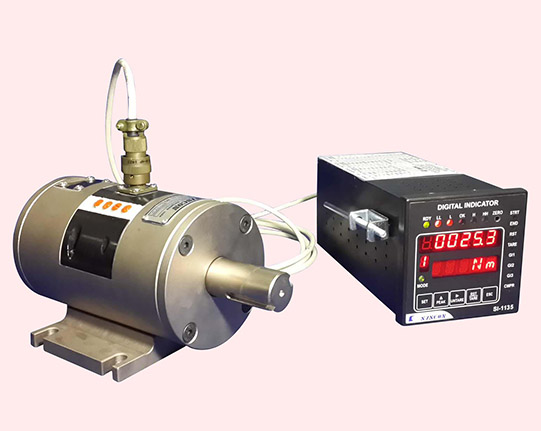

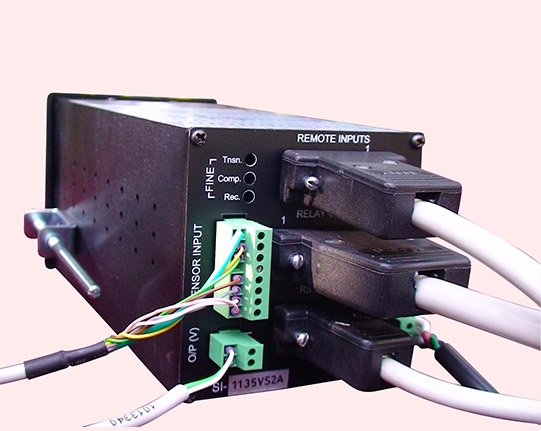

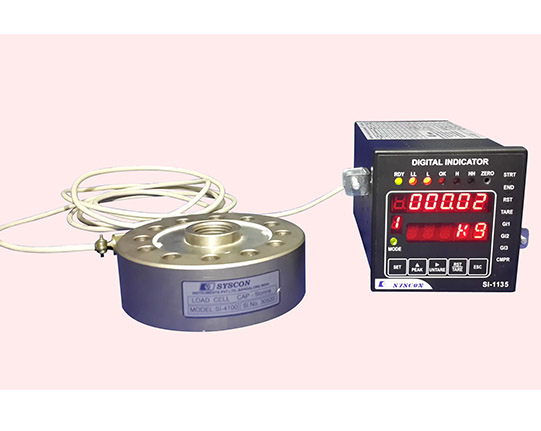

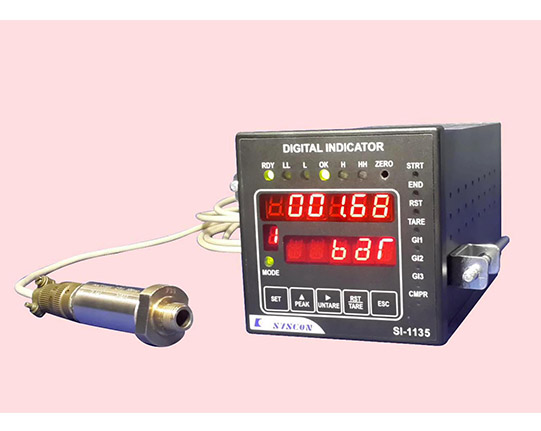

SI-1135 Din Size Indicator for Load / Pressure / Torque Measurement with Software Controlled Calibration

Features

  • Micro controller based with on board RTC
  • Compatible with Strain gage based Full bridge sensors Load, Pressur, Torque
  • Software controlled - Calibration, Analogue Zero, Decimal point & Unit selection
  • Excitation with Sense circuit
  • Sensor health check
  • Remote Inputs & Relay outputs health check
  • Recorder Output

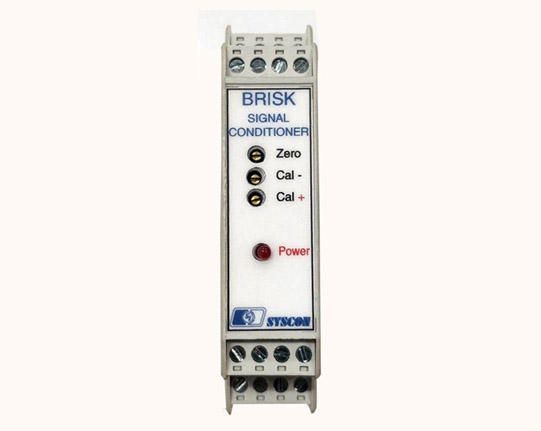

BRISK-1166 Din Rail Mount Signal Conditioner for Strain Gage Based Sensors

Features

  • Compact in size, Din rail mount
  • AC / DC Models.
  • 4 different models available with different input and output options.
  • On board Excitation.
  • On board active low pass filter with four different cut off Frequency selection.
  • Front panel zero control for DC offset adjust.

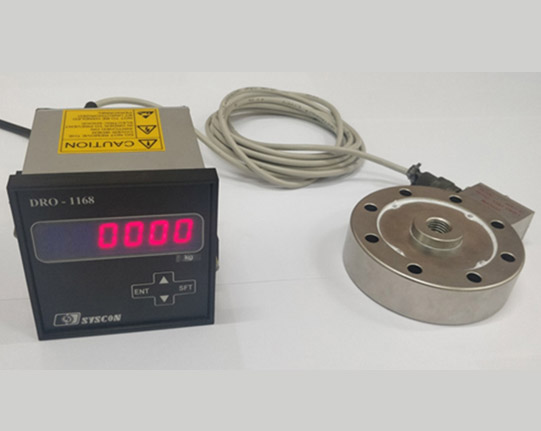

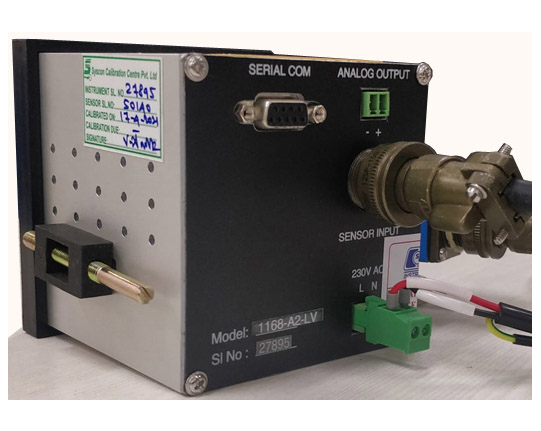

DRO-1168 Din Size Indicator for Load / Pressure / Torque Measurement

Features

  • Wide operating Voltage range
  • More than 20 models to cover specific application needs.
  • RS485 Modbus RTU feature
  • Software teaching calibration
  • Compact in size
