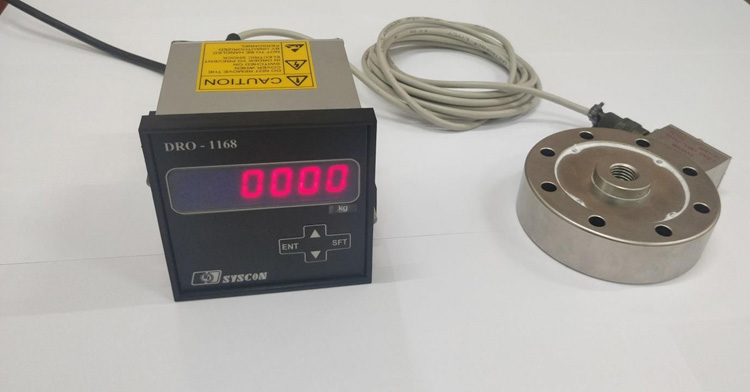

Din Size Indicator

Display range

Upto20000,through7segmentLEDdisplay of height 14 mm

Accuracy

±0.25% of FSR

Compatibility

Full Bridge Sensors with gage resistance of 350Ω / 120Ω

Calibration

Factory Set - 5 Step Digital teaching option provided

Keyboard function

ENT, INC, DEC,SFT

Modes supported

Normal / Peak to Peak

Resolution

Factory Set, Configurable decimal position

ADC

16 Bit

Display update rate

Factory Set as 32, Configurable as 1 to 256

Excitation

10V DC

Analog output

Factory set Voltage or Current

Analog output Span

Voltage outputconfigurable 0 to 5V, ±5V, 0to 10V, ±10V

Current output configurable 4 to 20mA or 0 to 20 mA

Serial communication

Factory Set, RS232 \ RS485

AC Fuse

1A, Self-Resettable

Operating voltage

90 to 260VAC

Power consumption

<7 Watts

Operating temperature

+10°C to +50°C

Size in mm

96H X96WX96D

Weight in Kg

500g approximately

Enclosure

Alluminium shell

Mains input connector

2 Pin phoenix connector

Sensor input connector

4 Pin miniature allied connector

Output connector

2 Pin phoenix connector

Serial communication connector

9 Pin ‘D’ type connector (female)

Model Details

AC
Version

RS232

RS485
(Modbus - RTU)

Measurement Parameter*
L/P/T/D/PD

Voltage (SE)

Current

1168-A2-LV

√

√

X

L

√

X

1168-A4-LV

√

X

√

L

√

X

1168-A2-LI

√

√

X

L

X

√

1168-A4-LI

√

X

√

L

X

√

1168-A2-PV

√

√

X

P

√

X

1168-A4-PV

√

X

√

P

√

X

1168-A2-PI

√

√

X

P

X

√

1168-A4-PI

√

X

√

P

X

√

1168-A2-TV

√

√

X

T

√

X

1168-A4-TV

√

X

√

T

√

X

1168-A2-TI

√

√

X

T

X

√

1168-A4-TI

√

X

√

T

X

√
