Calibration Services
Syscon has been providing high quality and reliable calibration services to our customers. Our commitment is towards accuracy, reliability, high quality, and service.
Syscon performs calibration of various electronic sensors and digital instruments using universally adopted standard procedures.
ISO/IEC 17025: 2017 Accredited by NABL
Syscon is committed to comply with the statutory requirements of ISO/IEC 17025: 2017 standard. ISO/IEC 17025 accreditation is our assurance that our work meets the highest standards including :Documented and controlled procedures
- Controlled calibration environment
- Trained technicians
- Traceability to national standards
What We Calibrate
Conforming to ISO/IEC 17025 we undertake calibration of instruments of various mechanical parameters:
| Mechanical Parameters | |
|---|---|
| Pressure | Air Leak Tester ( Low & High Pressure), Pressure Sensor with Indicators, Digital & Analogue Pressure Gauges, Manometers |
| Force | Load Cell With Indicator, Uniaxial Testing Machine, Compression Testing Machine |
| Torque | Torque Sensor With Indicator |
| Dimension | Displacement Sensor With Indicator, LVDT, Dial Gauge |
| Vacuum | Vacuum Sensor with indicator, Digital & Analogue Vacuum Gauges, Manometers |
| Flow Parameters | |
| Air Flow | Flow Meter , Laminar Flow Meter, Rotameter, Leak Master, Flow Switch |
We also specialize in customized calibration for any type of transducer/ instrument/ test benches to suit specific customer requirements.

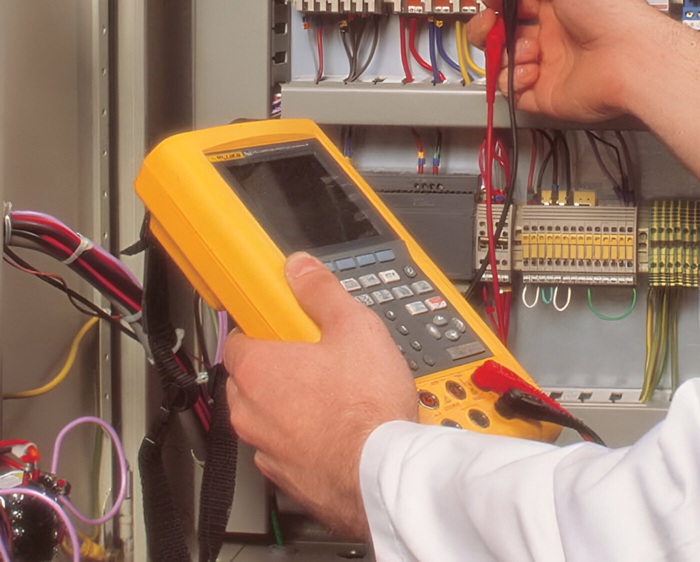

OnSite Calibration
Now you don't have to ship your instrument to us, or stop your production line; we come to your premises and calibrate your instruments. Our on site calibration services are available for any region, location, or industry.
What We Calibrate on Site
- Force : Load Indicator with Load Cell, UTM & CTM
- Pressure : Air Leak Tester, Pressure & Vacuum indicator with sensor, Pressure Switch and Gauges.
- Displacement : Displacement indicator with LVDT
- Flow Measuring Instruments
- Torque Indicator with Sensor (Low Capacity)
On site advantage
- Fast Turnaround
- Your instruments are returned in hours
- Shipping cost, receiving, gate passes, etc.
- No Damaged Equipment due to Shipping.
- Minor Instrument Repairs Done on the Spot.
- Reduce your need for spares.
- Reduce Paperwork
Contact our on-site calibration services coordinator to discuss a program for your facility.
Repair & Maintenance
Syscon takes up servicing, Maintenance / periodic maintenance of Electronic Instruments and transducers manufactured by Syscon Instruments - the parent Company and we are authorized Repair and Calibration Centre for all Fukuda Products in India Most of the Service activity is presently carried out from in-house facility at Bangalore, but Service Engineers are periodically deputed to site for on-site service in case of emergencies.
Syscon is interested in taking up Annual Maintenance/ Calibration Contracts in a big way.
Our goal is to have more and more customers to go in for this facility so that down time is reduced.
Lab Capabilities
Over all Lab Scope
| Sl.no | Parameter/ Measured quantity/ Device under Calibration | Range |
|---|---|---|
| AT INHOUSE (LABORATORY) | ||
| Pressure | ||
| 1 | Pressure Measuring Instruments | 0.1 to 70 MPa ( 0 to 700 bar) |
| 2 | Air Leak Tester ( Low Pressure) | 0 to 2000 Pa |
| 3 | Air Leak Tester (High Pressure) | 0 to 1000 kPa |
| 4 | Low Pressure Measuring Instruments | 0 to10 kPa |
| 5 | Low Pressure Measuring Instruments | 0 to 2 Bar |
| 6 | Low Pressure Measuring Instruments | 2 to 40 Bar |
| Dimension | ||
| 7 | Displacement Sensor With Indicator,LVDT,Dial Gauge | 0 to 100 mm |
| Force. | ||
| 8 | Load Cell With Indicator | 0 to 1000 kN |
| Flow | ||
| 9 | Air Flow Measuring Devices | 1 ml/min to 200 L/min |
| Torque | ||
| 10 | Torque Sensor With Indicator | 0 to 5000 kgf.m |
| AT SITE (CLIENT LOCATION) | ||
| Pressure | ||
| 1 | Air Leak Tester ( Low Pressure) | 0 to 2000 Pa |
| 2 | Air Leak Tester (High Pressure) | 0 to 1000 kPa |
| 3 | Pressure Measuring Instruments (Pnemautic Pressure) | 0 to 40 bar |
| 4 | Pressure Measuring Instruments (Hydraulic Pressure) | 0 to 600 bar |
| 5 | Vacuum Measuring Instruments | 0 to -84 kPa |
| Force. | ||
| 6 | Static Uniaxial Testing Machines with Load Cell & Indicator | 0 to 1000 kN |
| Torque | ||
| 7 | Torque Sensor With Indicator | 0 to 10 kgf.m |
| Flow | ||
| 8 | Air Flow Measuring Devices | 1 ml/min to 200 L/min |
Parameters
Force (N)
Force (N) is a quantity capable of changing the size, shape, or motion of an object. It is a vector quantity and, as such, it has both direction and magnitude.
Pressure ( p or P)
Pressure ( p or P) is the force applied perpendicular to the surface of an object per unit area over which that force is distributed
Torque (N-m)
Torque (N-m). is the rotational equivalent of linear force. It is also referred to as the moment, moment of force, rotational force or turning effect, depending on the field of study. It represents the capability of a force to produce change in the rotational motion of the body.
Air flow (ml/min)
Air flow (ml/min) is the movement of air. The primary cause of airflow is the existence of air. Air behaves in a fluid manner, meaning particles naturally flow from areas of higher pressure to those where the pressure is lower. Atmospheric air pressure is directly related to altitude, temperature, and composition..
Dimensional (mm)
Dimensional (mm) measurement is to know and quantify the size and shape of things. It involves lengths and angles as well as geometrical properties such as flatness and straightness.
NABL Scope
| Sl.no | Parameter/ Measured quantity/ Device under Calibration | Range |
|---|---|---|
| AT INHOUSE (LABORATORY) | ||
| Pressure | ||
| 1 | Pressure Measuring Instruments | 0.1 to 70 MPa ( 0 to 700 bar) |
| 2 | Air Leak Tester ( Low Pressure) | 0 to 2000 Pa |
| 3 | Air Leak Tester (High Pressure) | 0 to 1000 kPa |
| 4 | Low Pressure Sensor | 0 to10 kPa |
| Dimension | ||
| 5 | Displacement Sensor With Indicator,LVDT,Dial Gauge | 0 to 100 mm |
| 6 | Dial Gauge | 0 to 10 mm |
| Force. | ||
| 7 | Load Cell With Indicator | 2kN to 100 kN |
| FLUID Flow | ||
| 8 | Air Flow Measuring Instruments | 1 ml/min to 200 L/min |
| Torque | ||
| AT SITE (CLIENT LOCATION) | ||
| Pressure | ||
| 1 | Air Leak Tester ( Low Pressure) | 0 to 2000 Pa |
| 2 | Air Leak Tester (High Pressure) | 0 to 1000 kPa |
| 3 | Pressure Measuring Instruments (Pnemautic Pressure) | 0 to 40 bar |
| 4 | Pressure Measuring Instruments (Hydraulic Pressure) | 0 to 600 bar |
| 5 | Vacuum Measuring Instruments | 0 to -84 kPa |
| Force. | ||
| 6 | Static Uniaxial Testing Machines with Load Cell & Indicator | 0 to 1000 kN |
Parameters
Force (N)
Force (N) is a quantity capable of changing the size, shape, or motion of an object. It is a vector quantity and, as such, it has both direction and magnitude.
Pressure ( p or P)
Pressure ( p or P) is the force applied perpendicular to the surface of an object per unit area over which that force is distributed
Torque (N-m)
Torque (N-m). is the rotational equivalent of linear force. It is also referred to as the moment, moment of force, rotational force or turning effect, depending on the field of study. It represents the capability of a force to produce change in the rotational motion of the body.
Air flow (ml/min)
Air flow (ml/min) is the movement of air. The primary cause of airflow is the existence of air. Air behaves in a fluid manner, meaning particles naturally flow from areas of higher pressure to those where the pressure is lower. Atmospheric air pressure is directly related to altitude, temperature, and composition..
Dimensional (mm)
Dimensional (mm) measurement is to know and quantify the size and shape of things. It involves lengths and angles as well as geometrical properties such as flatness and straightness.
Certification Options
Our Centre for Calibration offers flexible calibration certificate options to meet your exact requirements.
Accredited 17025 Calibration
Instruments are calibrated in accordance with ISO/IEC 17025: 2017 within our approved scope of accreditation as per Manufacturer's recommended procedure / Lab approved procedure including data reporting and associated uncertainties of measurement.
Non Accredited 17025 Calibration
Instruments are calibrated as per Manufacturer's recommended procedure / Lab approved procedure based on standard measurement practices traceable to National / International Standards. Complete data report before / after adjustment is recorded and shown on the calibration certificate.
With Data Before / After Adjustment
Instruments are calibrated as per Manufacturer's recommended procedure / Lab approved procedure based on standard measurement practices traceable to National / International Standards. Complete data report before / after adjustment is recorded and shown on the calibration certificate.
| “Syscon provides a single window…..ISO 17025: 2017” Our Calibration Centre offers flexible calibration certificate options to meet your exact requirements. And the rest of the page follows. | Accredited 17025 Calibration | Non Accredited 17025 Calibration | With Data Before / After Adjustment |
| Test points as per request (normally 10) | |||
| Test points if extra *charges applicable | |||
| Interpretation or opinion required | |||
| In any of minor error, adjustment required ** | |||
| Next due date to be mentioned | |||
| Any instruments standard to be mentioned |
